These VHF boat marine radios allow you to transmit easily from the wheel while keeping your focus on the waters ahead. They are for anglers of all ages and experience and packed with outstanding features and built compact and rugged to take the rigors of being out on the water. Most handheld models fit into your hand, have a large display that is clear and easy to operate. They are submersible for up to 30 minutes at five feet, have the waterproof level, and won’t give up no matter how wet it gets — whitecap splash, gusty spray, tidal wave, whatever, this radio can take it. They float to the surface, if you drop it in the water, and glow in the dark seals and power key allows you to find radio easily. Some models are switchable for short- and long-range communication — this is also a convenient way to save a little battery life. In most situations, the 1 Watt transmission power is all you need.
They cover all USA, International, and Canadian marine channels, keeping you up-to-date with all the latest marine activity and brings everything you’ll need on the water into one compact design. For some models, triple watch mode monitor also channels 16 and 9 for a signal while you listen to the currently selected channel (checking channels 16 and 9 for activity every 2 seconds). Some portable VHF radio models have additional accessories included – SMA flexible rubber antenna, rapid clip-on DC charger, lithium-Ion rechargeable battery, sturdy belt clip for maximum mobility.
What is a VHF Radio?
Very High Frequency (VHF) radios are essential communication devices, particularly in marine settings. These radios operate in the VHF band of the radio spectrum, typically between 156 and 174 MHz for marine use.
Overview of VHF Technology
VHF technology offers several advantages for maritime communication:
- Line-of-sight transmission
- Relatively clear and static-free reception
- Good range for short to medium distances
- Low power consumption
Importance in Marine Communication
VHF radios play a crucial role in marine safety and communication:
- Emergency communications
- Weather updates and warnings
- Ship-to-ship and ship-to-shore communication
- Navigation assistance
Types of VHF Radios
VHF radios come in two main types: handheld and fixed mount. Each has its own set of advantages and use cases.
Handheld vs. Fixed Mount Radios
| Feature | Handheld VHF | Fixed Mount VHF |
|---|---|---|
| Portability | High | Low |
| Power Output | Lower (typically 1-6 watts) | Higher (typically 25 watts) |
| Range | Shorter | Longer |
| Battery Life | Limited | Connects to boat’s power |
| Installation | No installation required | Permanent installation |
| Best For | Small boats, kayaks, emergencies | Larger vessels, primary communication |
Comparison of Features and Uses
- Handheld VHF Radios
- Ideal for small watercraft
- Excellent as backup or emergency devices
- Easy to use and carry
- Limited range and power
- Fixed Mount VHF Radios
- Suitable for larger boats and yachts
- Provide more reliable, long-range communication
- Often include advanced features like DSC
- Require professional installation
Key Features to Consider
When choosing a VHF radio, several key features should be taken into account:
Power Output and Range
- Power output directly affects transmission range
- Most fixed mount radios offer 25 watts of power
- Handheld units typically range from 1 to 6 watts
- Actual range depends on factors like antenna height and environmental conditions
Built-in GPS and DSC Capabilities
- GPS (Global Positioning System)
- Allows for accurate position reporting
- Essential for safety and navigation
- DSC (Digital Selective Calling)
- Enables direct calling to specific vessels
- Facilitates automated distress calls with position information
- Requires MMSI (Maritime Mobile Service Identity) number
Regulations and Licensing
Understanding the legal requirements for VHF radio use is crucial for all operators.
Overview of Maritime Communication Laws
Maritime communication is governed by international and national laws:
- International Telecommunication Union (ITU) regulations
- Local coast guard and maritime authority rules
- Specific channel designations for various purposes (e.g., Channel 16 for distress calls)
Licensing Requirements for Users
Licensing requirements vary by country, but generally include:
- Operator’s license for certain types of use
- Station license for the radio itself
- MMSI number registration for DSC-enabled radios
Note: Always check with local authorities for specific requirements in your area.
Leading Manufacturers in the Market
ICOM VHF Boat Ship to Shore Marine Radio with Hailer [Icom]
Large LCD display, Built-in loudhailer/foghorn. Active noise cancelling, Nmea 0183 connectivity.
Handheld VHF Marine Radio with Antenna [Standard Horizon]
Large 1. 75″ LCD; 5 or 1 Watts of transmit power. All scanning functions including Programmable, Priority Scan and Dual/Tri Watch
Portable 6W Switchable WaterProof Handheld Submersible VHF Marine Radio [Uniden]
Submersible for up to 30 minutes at five feet. Switchable model, a convenient way to save a little battery life. Covers all USA, International, and Canadian marine channels.
25W VHF Marine Boat Ship to Shore Radio with GPS [Standart Horizon]
Second Station RAM Mic compatible Easy to Operate menu system Submersible Design.
5W Marine Two-Way Portable VHF Handheld Radio with GPS/DSC with Antenna [Icom]
Built-in GPS with DSC. Dual/Tri Watch function. Three year warranty.
White VHF Marine Ship to Shore Boat Radio (DSC) [Lowrance]
Intuitive rotary and keypad controls. Four-button fist microphone. Class D DSC Approved. NMEA 2000 compatible.
6 Wt Submersible Handheld Floating VHF Radio with Noise Cancelling Mic, LCD Display, Memory Scan [Cobra]
Allows operation of channels in the US, Canada, and internationally at 1, 3, or 6 watts with for short and long range communication, and access to NOAA weather channels. Scan channels to find conversations in progress and have instant access to Channel 16 for emergency situations.
6W Floating Handheld Portable VHF with Internal GPS with Antenna [Standart Horizon]
Separate Receiver for CH70 (Receiving DSC Calls). Integrated 66 Channel WAAS GPS receiver. Submersible IPX8 waterproof rating.

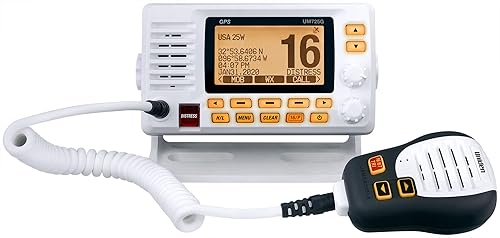

25-Wt Two-Way Waterproof Fixed Mount Marine VHF Radio (DSC) [Uniden]
All USA, International and Canadian marine channels. Backlit text display shows channel names, radio menu, DSC features and GPS data. Full DSC capability including position send and request.
Two-Way Waterproof 25-Wt Fixed Mount Marine Vhf Radio (Dsc) [Uniden]
Compact design, the triple watch features, DSC capabilities. Complies with IPX4 waterproof standards, which means the radio is resistant to damage from rain or splashing water. A high-performance transceiver ensures clear communication.
ICOM VHF Boat Ship to Shore Marine Radio with Hailer [Icom]
Large LCD display, Built-in loudhailer/foghorn. Active noise cancelling, Nmea 0183 connectivity.
Handheld VHF Marine Radio with Antenna [Standard Horizon]
Large 1. 75″ LCD; 5 or 1 Watts of transmit power. All scanning functions including Programmable, Priority Scan and Dual/Tri Watch
Popular Models and Their Specifications
| Brand | Model | Type | Power Output | GPS | DSC | Notable Features |
|---|---|---|---|---|---|---|
| Icom | IC-M94D | Handheld | 6W | Yes | Yes | Floating, noise-canceling |
| Standard Horizon | GX2200 | Fixed | 25W | Yes | Yes | 30W hailer, fog horn |
| Garmin | 315i | Fixed | 25W | Yes | Yes | NMEA 2000 compatible |

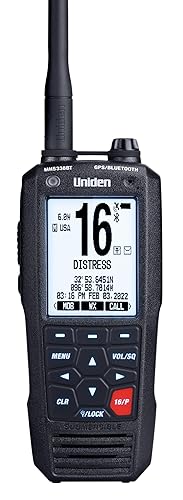

| Uniden | MHS335BT | Handheld | 6W | Yes | Yes | Bluetooth connectivity |
| Cobra | MR HH500 | Handheld | 6W | Yes | Yes | Floating, noise-canceling |
When selecting a VHF radio, consider your specific needs, boat size, and typical usage scenarios. Whether you opt for a handheld unit for your kayak adventures or a powerful fixed mount system for your yacht, a VHF radio is an indispensable tool for safe and effective marine communication.
VHF Radio Buying Guide
When purchasing a VHF radio for your boat, consider the following factors:
1. Fixed Mount vs. Handheld
- Fixed Mount Radios
- Pros: Higher power output, longer range, permanent installation
- Cons: Requires professional installation, less portable
- Best for: Larger boats, primary communication system
- Handheld Radios
- Pros: Portable, no installation required, good as a backup
- Cons: Lower power output, shorter range, limited battery life
- Best for: Small boats, kayaks, emergency backup
2. Power Output
- Fixed mount radios typically offer 25 watts
- Handheld units range from 1 to 6 watts
- Higher power means longer range, but also higher power consumption
3. DSC (Digital Selective Calling) Capability
- Allows for automated distress calls with GPS position
- Enables direct calling to other DSC-equipped radios
- Requires an MMSI (Maritime Mobile Service Identity) number
4. GPS Integration
- Built-in GPS for accurate position reporting
- Essential for safety and navigation
- Some models allow connection to external GPS systems
5. Waterproof Rating
- Look for IPX7 or IPX8 ratings for best water protection
- IPX7: Can withstand immersion in 1 meter of water for 30 minutes
- IPX8: Can withstand continuous immersion in water
6. Channel Scanning and Dual/Tri Watch
- Channel scanning helps monitor multiple channels
- Dual watch monitors Channel 16 and one other channel
- Tri watch monitors Channel 16, one other channel, and a weather channel
7. NOAA Weather Alert
- Automatic reception of weather alerts
- Important for safety and trip planning
8. Battery Life (for handheld units)
- Consider battery type (rechargeable vs. disposable)
- Look for models with long battery life and low power consumption modes
9. Additional Features
- Noise-canceling microphones for clearer communication
- Floating design (for handheld units)
- Large, backlit displays for easy reading
- Interface with other onboard electronics (NMEA compatibility)
10. Ease of Use
- Intuitive interface and button layout
- Large, easy-to-press buttons (especially important for use with gloves)
Enhancing VHF Radio Performance
Improving Signal Quality
Tips for Antenna Placement and Selection
- Height is Key:
- Mount the antenna as high as possible
- Remember the rule: “Height is might” in VHF communications
- Antenna Length:
- Longer antennas generally provide better performance
- 8′ antennas are a good compromise between size and performance
- Avoid Obstructions:
- Keep the antenna clear of metal objects and other electronics
- Ensure a clear line of sight in all directions
- Use Quality Coaxial Cable:
- Use low-loss cable like RG-8X or RG-213
- Keep cable runs as short as possible
- Consider a Diversity Antenna System:
- Use two antennas to improve reception in varying conditions
Environmental Factors Affecting Performance
| Factor | Impact | Mitigation |
|---|---|---|
| Weather | Heavy rain or fog can reduce range | Increase power output if possible |
| Sea State | High waves can affect stability and range | Consider a stabilized antenna mount |
| Geographical Features | Islands or cliffs can block signals | Be aware of your surroundings and adjust accordingly |
| Atmospheric Conditions | Temperature inversions can extend or limit range | Understand daily and seasonal variations in your area |
Using VHF Radios Effectively
Best Practices for Communication
- Listen Before Transmitting: Ensure the channel is clear
- Speak Clearly: Use a normal tone and pace
- Be Concise: Keep messages short and to the point
- Use Low Power: Start with low power and increase if necessary
- Identify Yourself: Always state your vessel name and call sign
- Respect Channel Designations: Use channels for their intended purposes
Common Phrases and Protocols
- “Mayday”: Life-threatening emergency
- “Pan-Pan”: Urgent situation, but not life-threatening
- “Securité”: Safety message about navigation or weather
- “Over”: End of transmission, expecting a response
- “Out”: End of conversation
Maintenance Tips
Regular Checks and Upkeep
- Inspect Connections: Check all cables and connectors for corrosion or damage
- Clean Exterior: Use a damp cloth to remove salt and grime
- Test Transmission: Perform regular radio checks
- Update Charts and Software: Keep all integrated systems up to date
- Check Battery: For handhelds, ensure batteries are charged and in good condition
Troubleshooting Common Issues
| Issue | Possible Cause | Solution |
|---|---|---|
| Weak Transmission | Antenna problem or low battery | Check antenna connections, replace battery |
| No Power | Blown fuse or disconnected power | Check fuses and power connections |
| Distorted Audio | Water in microphone or speaker | Dry out the unit, consider professional service |
| Intermittent Operation | Loose connections | Check and tighten all connections |
Upgrading Your VHF System
When to Consider an Upgrade
- Your current system is more than 10 years old
- You need additional features like DSC or AIS integration
- You’re experiencing frequent issues or poor performance
- Your boating habits have changed (e.g., venturing further offshore)
New Technologies and Features to Look For
- Integrated AIS: Automatic Identification System for vessel tracking
- Touchscreen Interfaces: Easier operation and menu navigation
- Wireless Handsets: Allows communication from anywhere on the boat
- Advanced DSC Features: Improved distress signaling and position sharing
- Noise-Cancelling Technology: Clearer communication in noisy environments
Integrating with Other Marine Electronics
Compatibility with GPS and AIS Systems
- NMEA 0183 and NMEA 2000: Standard protocols for marine electronics
- Integrated Chartplotters: Combined navigation and communication
- Multi-Function Displays (MFDs): Centralized control of various systems
Benefits of a Unified Communication System
- Improved Situational Awareness: All information in one place
- Streamlined Operation: Fewer individual devices to manage
- Enhanced Safety: Quicker access to critical information in emergencies
- Data Sharing: Seamless transfer of information between systems
- Space Saving: Reduced clutter on the helm
Safety and Emergency Use of VHF Radios
Emergency Communication Protocols
Understanding Distress Signals
- Mayday: Used only for life-threatening emergencies
- Procedure: “Mayday, Mayday, Mayday. This is [vessel name and call sign]…”
- State nature of distress, position, number of persons on board, and assistance required
- Pan-Pan: Used for urgent situations not immediately life-threatening
- Procedure: “Pan-Pan, Pan-Pan, Pan-Pan. All stations…”
- Securité: Used for important navigational or weather warnings
- Procedure: “Securité, Securité, Securité. All stations…”
How to Use DSC Features Effectively
- Sending a Distress Alert:
- Press and hold the dedicated distress button for 5 seconds
- If possible, include nature of distress and position
- Receiving a Distress Alert:
- Acknowledge receipt if a coast station hasn’t responded
- Stand by on Channel 16 for voice communication
- Regular Testing:
- Perform monthly DSC tests with coast stations or other vessels
Real-Life Scenarios
Case Studies of Successful VHF Use in Emergencies
- Sinking Vessel Off Coast of Florida (2019)
- Quick DSC alert allowed Coast Guard to pinpoint location
- All crew rescued within 45 minutes
- Medical Emergency in the English Channel (2020)
- Pan-Pan call resulted in nearby vessel with doctor on board responding
- Patient stabilized and transferred to emergency services
Lessons Learned from Marine Incidents
| Incident | Lesson Learned |
|---|---|
| Delayed Distress Call, Gulf of Mexico (2018) | Don’t hesitate to call for help early |
| Radio Failure, Pacific Northwest (2021) | Importance of backup communication devices |
| Miscommunicated Position, Mediterranean (2020) | Regularly verify and update your GPS position |
Legal Responsibilities
Understanding Your Obligations as a Boat Operator
- Monitoring Channel 16: Required whenever your vessel is underway
- Responding to Distress Calls: Legally obligated to render assistance if possible
- Proper Licensing: Ensure you have the correct license for your radio and operation area
- Accurate Information: Maintain current vessel and owner information with authorities
Consequences of Misuse
- False Distress Calls:
- Civil penalties up to $10,000
- Criminal fines up to $250,000 and up to 6 years imprisonment (US law)
- Operating Without License:
- Fines vary by country, typically range from $500 to $10,000
- Interfering with Emergency Communications:
- Severe penalties, including license revocation and criminal charges
Remember: Your VHF radio is a critical safety tool. Proper use and understanding can save lives, including your own. Always prioritize safety and follow proper protocols in all radio communications.
Future Trends in VHF Technology: A Look Ahead
Advancements in VHF Radio Technology
Innovations in Design and Functionality
- Miniaturization
- Smaller, more compact units without compromising performance
- Increased portability for handheld devices
- Enhanced User Interfaces
- Touchscreen displays becoming standard
- Intuitive, app-like interfaces for easier navigation
- Improved Power Efficiency
- Longer battery life for handheld units
- More efficient power usage in fixed-mount radios
- Advanced Noise Cancellation
- AI-driven noise reduction for clearer communication
- Adaptive algorithms to handle varying marine environments
- Multilingual Support
- Real-time translation capabilities for international waters
- Voice-to-text and text-to-voice conversions
The Role of Digital Communication
- Digital Selective Calling (DSC) Enhancements
- Improved integration with other onboard systems
- More sophisticated distress alerting capabilities
- Software-Defined Radios (SDR)
- Increased flexibility and upgradability through software updates
- Potential for multi-band operation (VHF, MF, HF) in a single unit
- Data Transmission Capabilities
- Higher bandwidth for sending images or small data files
- Integration with email and text messaging services
- Cognitive Radio Technology
- Automatic frequency selection based on congestion and interference
- Dynamic spectrum allocation for optimal communication
Integration with Smart Devices
How Smartphones and Tablets Can Enhance VHF Use
- Remote Control and Monitoring
- Control VHF radios through smartphone apps
- Monitor radio activity and receive alerts on personal devices
- Augmented Reality (AR) Integration
- Overlay communication data on live camera views
- Visualize radio range and nearby vessels in real-time
- Crowd-Sourced Information
- Share and receive real-time marine conditions and hazards
- Collaborative navigation and communication networks
- Enhanced Emergency Features
- Automatic distress messaging with GPS location to emergency contacts
- Integration with personal health monitoring devices for medical emergencies
Future Possibilities for Connectivity
| Technology | Potential Application |
|---|---|
| 5G/6G Networks | Extended range communication in coastal areas |
| Low Earth Orbit (LEO) Satellites | Global coverage for offshore communication |
| Internet of Things (IoT) | Interconnected marine devices for comprehensive vessel management |
| Blockchain | Secure, decentralized logging of communication and navigation data |
Environmental Considerations
Eco-friendly Practices in Marine Communication
- Sustainable Manufacturing
- Use of recycled and biodegradable materials in radio construction
- Energy-efficient production processes
- Solar-Powered Radios
- Integration of solar panels for self-sustaining power
- Reduced reliance on disposable batteries
- Energy Harvesting
- Utilizing motion and vibration on boats to generate power
- Kinetic charging systems for handheld units
- Electronic Waste Management
- Manufacturer take-back programs for old radios
- Modular designs for easier repair and component replacement
The Impact of Technology on Marine Ecosystems
- Reduced Noise Pollution
- Lower-power transmission technologies to minimize impact on marine life
- Frequency management to avoid disrupting cetacean communication
- Wildlife Tracking and Protection
- Integration of VHF systems with marine life tracking networks
- Automated alerts for protected marine areas
- Environmental Monitoring
- VHF radios doubling as data collection points for oceanographic research
- Crowd-sourced reporting of marine pollution and environmental concerns
- Sustainable Boating Practices
- VHF systems providing real-time guidance on eco-friendly navigation
- Integration with engine management systems for optimal fuel efficiency
As VHF technology continues to evolve, we can expect more sophisticated, user-friendly, and environmentally conscious communication systems. These advancements will not only enhance safety and convenience for boaters but also contribute to the protection and understanding of our marine environments.
FAQ
Do I need a license to operate a VHF radio?
In many countries, you need a license to operate a VHF radio on a boat. However, regulations vary. In the US, for example, you don’t need a license for domestic use, but you do for international waters.
What’s the difference between a handheld and a fixed-mount VHF radio?

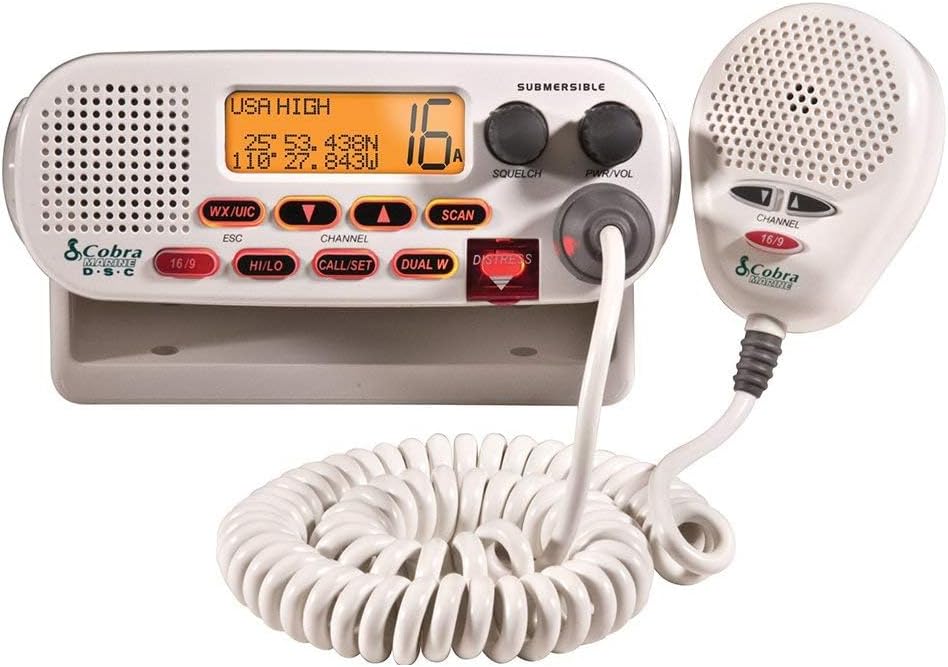

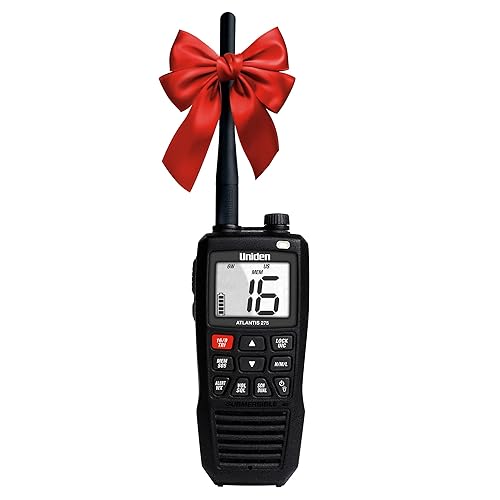

Handheld VHF radios are portable, battery-powered units. Fixed-mount radios are permanently installed on a vessel, have higher power output, and are connected to the boat’s electrical system.
What is the range of a VHF radio?
The range depends on various factors, including antenna height, power output, and environmental conditions. Typically, handheld units have a range of 3-5 miles, while fixed-mount units can reach 20 miles or more.
What does DSC stand for, and why is it important?
DSC stands for Digital Selective Calling. It’s an important feature that allows for automated distress calls, including your vessel’s position if connected to a GPS.
How does antenna height affect VHF radio performance?
Antenna height is crucial for VHF performance. A higher antenna generally provides better range due to the line-of-sight nature of VHF transmissions.
What is Channel 16 used for?
Channel 16 (156.8 MHz) is the international distress, safety, and calling channel. It should be used for emergency communications and initial contact before switching to a working channel.
How do I make a distress call?
To make a distress call, tune to Channel 16 and say “MAYDAY, MAYDAY, MAYDAY,” followed by your vessel name, position, nature of distress, and assistance required. If equipped with DSC, press the distress button for 5 seconds.
What’s the difference between “Mayday,” “Pan-Pan,” and “Securité” calls?
“Mayday” is for life-threatening emergencies. “Pan-Pan” is for urgent situations not immediately life-threatening. “Securité” is for important navigational or weather warnings.
How often should I test my VHF radio?
You should test your VHF radio before each trip. Many areas have automated radio check services, or you can request a radio check on Channel 16.
My VHF radio isn’t transmitting well. What could be the problem?
Poor transmission could be due to several factors: low battery (for handhelds), damaged antenna, corroded connections, or being in a poor location (e.g., surrounded by metal structures).
How do I update my VHF radio’s firmware?
The process varies by manufacturer. Generally, you’ll need to download the firmware from the manufacturer’s website and follow their specific instructions for updating.
What is AIS, and how does it relate to VHF?
AIS (Automatic Identification System) uses VHF frequencies to transmit vessel information. Some VHF radios can receive or even transmit AIS data, enhancing navigational awareness.
Can I use my VHF radio to get weather information?
Yes, many VHF radios can receive NOAA weather broadcasts. In the US, these are typically on channels WX1 to WX9.
What’s a MMSI number, and why do I need one?
An MMSI (Maritime Mobile Service Identity) is a unique 9-digit number used to identify your vessel in DSC communications. It’s necessary for using DSC features and should be programmed into your radio.
Are there any new technologies on the horizon for VHF radios?
Yes, emerging technologies include software-defined radios, integration with smartphones, and enhanced data transmission capabilities.
Will VHF radios become obsolete with the advent of satellite communications?
While satellite communications offer global coverage, VHF radios remain crucial for short-range marine communications and safety. They are likely to remain a primary communication tool for the foreseeable future.
Thesandshore.com is a source where the post VHF Radios for Boat or Kayak appeared first.
